Volumetric Flat Panel Luminaire

The Skyler™ recessed volumetric flat panel luminaire is an innovative LED fixture designed to deliver a modern aesthetic and complement today’s interior spaces. Featuring a low-profile form factor, the Skyler™ is ideal for buildings with a low plenum space and is suitable for all standard 2x2 or 2x4 grid ceilings. Incorporating edge-lit LED technology and micro-prismatic conical structures in the diffuser lens, the Skyler™ features a Unified Glare Rating (UGR) of less than 19, delivering light where it is needed and reducing direct glare to occupants. This creates a soft and comfortable lighting experience for commercial and institutional spaces including open offices, classrooms, retail and healthcare facilities.


Utilizing innovative edge-lit LED technology to reduce housing depth, the Skyler™ Volumetric Flat Panel features a compact yet sturdy aluminum construction designed to blend into modern architectural spaces. The bold, striking design of the Skyler™ goes beyond what was previously possible with fluorescent technology or even traditional LED troffer luminaires.


Sleek profile

Skyler™ 2x4: 2.615” (66.421mm) deep



  • Die-cast aluminum frame powder coated white

  • Light emitting surfaces are edge-lit acrylic for uniform illumination

  • Micro-prismatic lens delivers a Unified Glare Rating (UGR) of less than 19

  • Power Factor > 0.95, Total Harmonic Distortion (THD) <10%

  • Dimensions (in): 23.75 (W) x 2.34 (H) x 23.75/47.75 (L)

Performance Data Table Chart

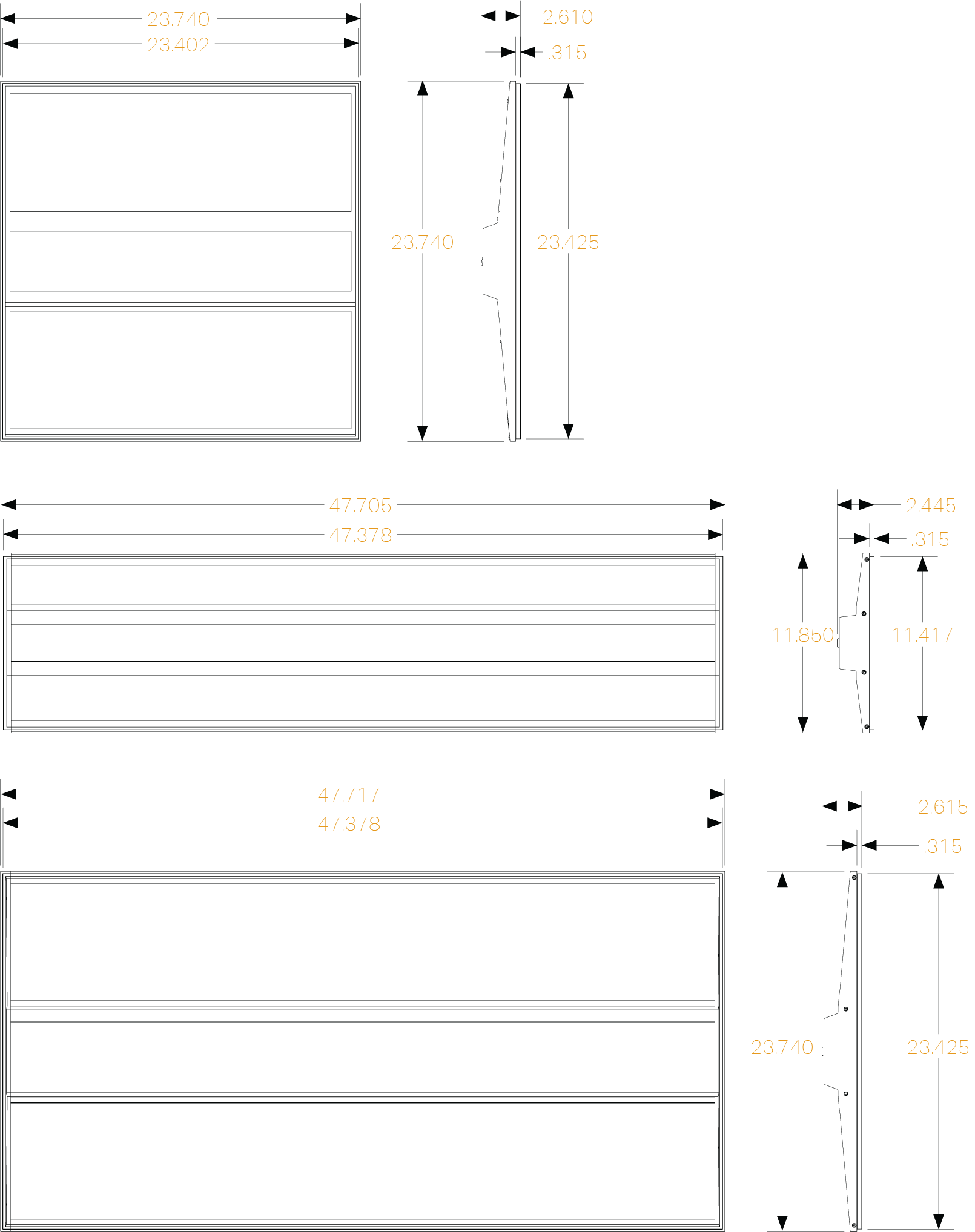

Dimension Drawings
