FEATURES

Performance

  • Delivers up to 6500 lumens

  • 109 lumens per watt at 4000K

Physcial

  • Sizes: 18”, 24”, and 36” diameters

  • Driver box: White, CRS cylinder that mounts directly to a 4” Octagonal and 3” Octagonal junction box. Dimensions: 8” Dia. x 1.5” high

  • Luminaire: Die cast aluminum body with powder coat finish. Powder Coated CRS top plate. Flat Optix™ lens with micro prismatic conical structure. UGR<19

  • Suspension: 1/16” Aircraft cable, 3 mounting points attach to luminaire and driver box.

  • Electrical: 120V-277V AC

  • Weight: 11lbs (18”), 13lbs (24”), and 20lbs (36”)

  • Optional cable management ring included.

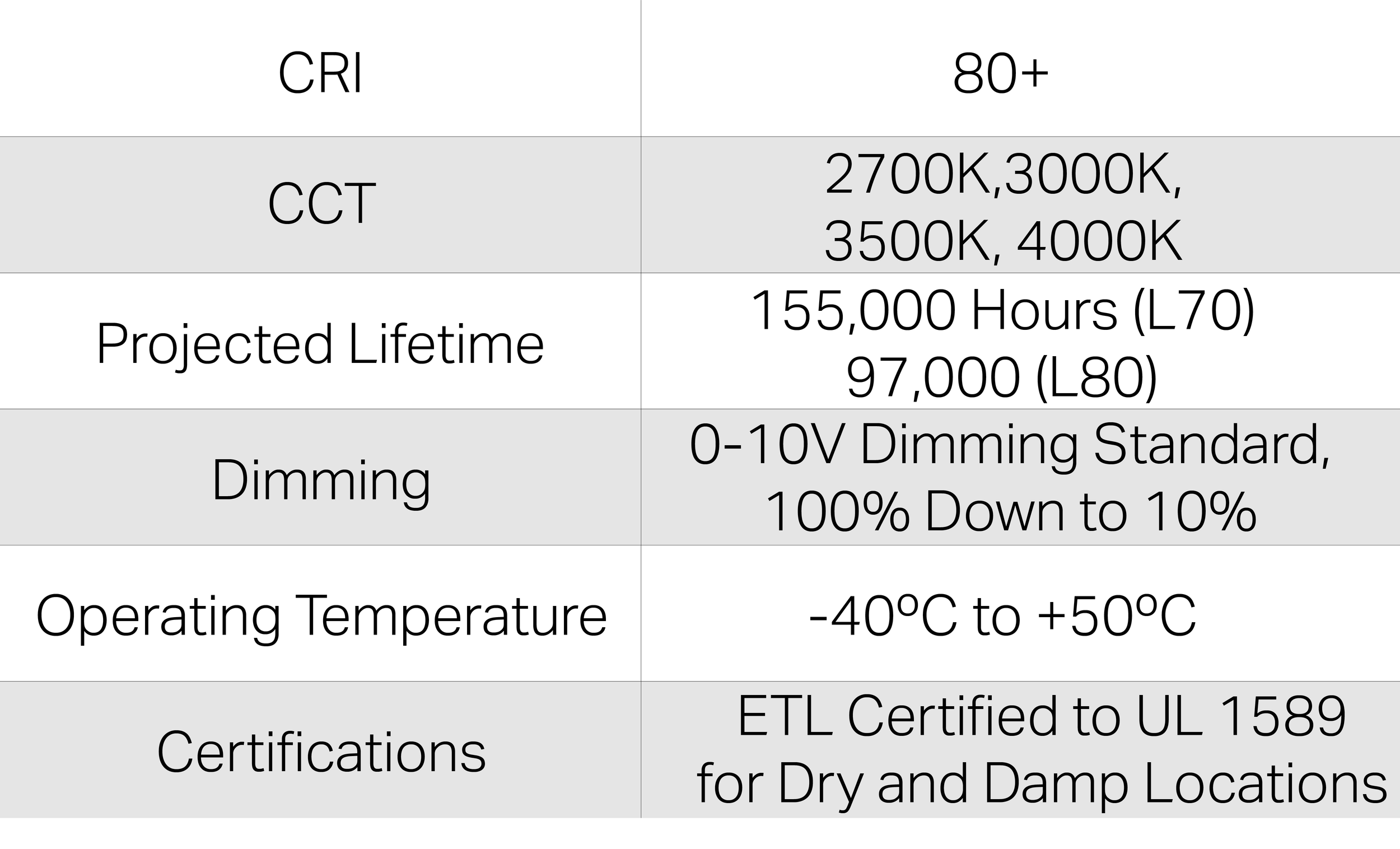

Performance Data Table Chart



DIMENSION DRAWINGS
